Pour Point and Cloud Test

Pour Point and Cloud Test – CPP 01

2-pour point 8-8-(1000x1000)

Pour point and cloud point indicate the lowest temperature that petroleum products can function, which is checked and evaluated periodically during cooling. The highest temperature at which turbidity is observed is the cloud point, and the lowest temperature at which oil movement is observed is the pour point, which is reported as the test result.

Technical Characteristics
  • The temperature range is from Room Temperature to -47 degrees Celsius
  • Test cell resistant to corrosion and rust
  • Includes 3 test cells for simultaneous testing
  • Digital display with ± 0.1 accuracy (instrument sensitivity ± 0.05 based on ASTM D97 standard)
  • With a compatible and environmentally friendly single cooling system
Temperature Controller
  • The device is equipped with a microprocessor temperature controller with a PID mechanism and programed for temperature stability and exact uniformity required for the test as well as calibrating it with high accuracy.
  • The display shows the temperature of the test cells and the set point.

Model

  • Cloud and Pour Point Test – CPP 01

Temp. Range

  • Ambient to -45 c

Temp. Controlle

  • PID Control

Accuracy

  • ± 0.1

Dimensions (mm)

  • 800 / 440 /350

Weight (kg)

  • 50 kg

Volume

  • 4 Liters

Power Source

  • 220V – 50Hz – 6A

Setting/Readout

  • Digital

Heater

  • 1000 W

Detector

  • Automatic

Test Method

  • ASTM D 97

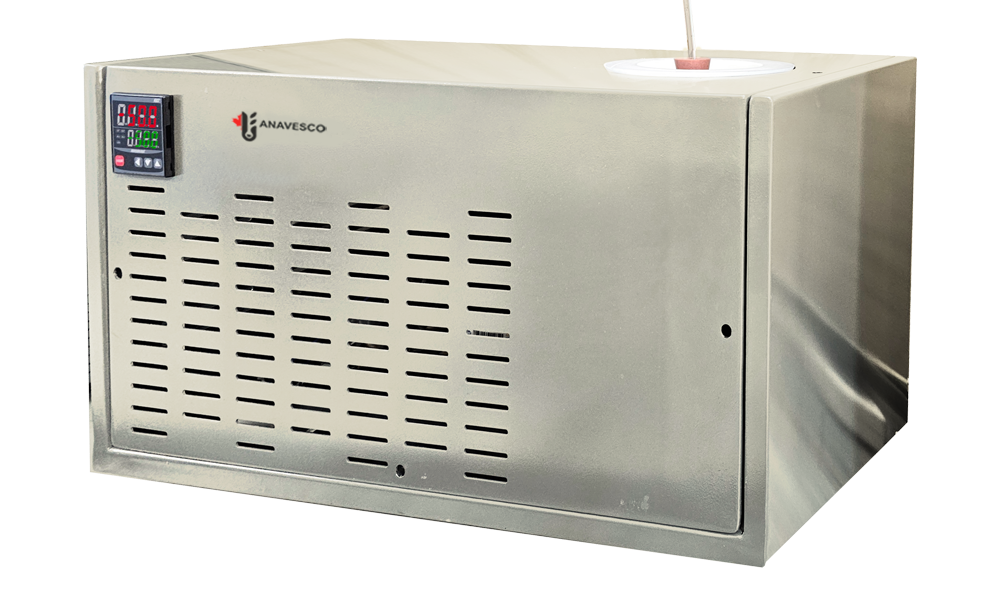

Pour Point and Cloud Test – CPP 01

CPP01 provides the user with the ability to determine the cloud point and pour point of petroleum fluids. It is made of chemical material and physical characteristics resistant. This instrument uses a compatible and environmentally friendly single cooling system together with the internal circulation and insulation to enable a stable temperature in the cell during the test.

Features
  • Includes three 14-liter test cells
  • Equipped with a cooling and material circulation system
  • The internal parts are made with chemical material and physical characteristics resistant
  • Includes a reference thermometer
  • Equipped with drain valves for cells
  • Digital display with ± 0.1 accuracy (instrument sensitivity ± 0.05)
