Foam Test

Foam Test - FT 02

FOAM TEST(1000x1000) AN

The foam test determines the foaming characteristics of a lubricant. It is one of the important physical characteristics of a fluid, especially lubricants, and it determines the lifespan and performance of the oil as well as the equipment in which the lubricant is used.

Technical Characteristics
  • Includes 2 cells with temperature control in accordance with ASTM D892 standard for simultaneous testing
    • Test cell 1, temperature range from 10 to 50 degrees Celsius
    • Test cell 2, temperature range from room temperature to 110 degrees Celsius
  • Adjustable light intensity of the test cell for the appropriate test conditions
  • Digital display with ±0.1 accuracy (instrument sensitivity ±0.05)
  • Internal cooling system
  • Equipped with 2 internal air pumps for simultaneous testing
  • Equipped with an automatic timer and a system that announces the test steps
Temperature Controller
  • The device is equipped with a microprocessor temperature controller with a PID mechanism and programed for temperature stability and exact uniformity required for the test as well as calibrating it with high accuracy.
  • The display shows the temperature of the test cells and the set point.

Model

  • Foam Test-FT 02

Temp. Range

  • Ambient to 150 c

Temp. Controlle

  • PID Control

Accuracy

  • ± 0.05

Dimensions (mm)

  • 250 / 650 / 670

Weight (kg)

  • 35 kg

Power Source

  • 220V – 50Hz – 2A

Setting/Readout

  • Digital & WiFi Controller

Heater

  • 1000 W

Detector

  • Automatic

Test Method

  • ASTM D 892

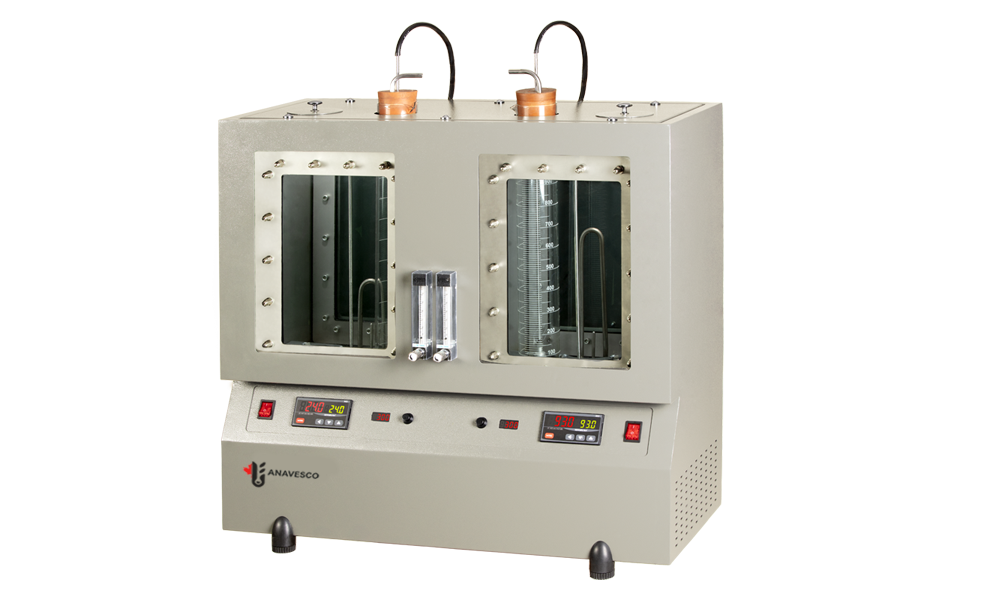

Foam Test – FT 02

This instrument is used to determine the tendency and stability of foam in fluids, especially of oil. The advantages of this instrument include keeping temperature uniformity and stability with a heating system and a circulating stirrer and corrosion-resistant internal parts (chemical material and physical characteristics resistant). The internal cooling system along with 2 air pumps enables simultaneous testing at 24 degrees and 93.5 degrees with accuracy and efficiency according to ASTM D892 standard.

Features
  • Includes two 14-liter test cells
  • Heating and material circulation system
  • Parts related to fluid cells are made of chemical material and physical characteristics resistant
  • Includes a reference thermometer
  • Equipped with drain valves for cells
  • Digital display with ±0.1 accuracy (instrument sensitivity ±0.05)
  • Adjustable temperature
  • Internal cooling system with the ability to perform tests at temperatures lower than the room temperature
  • Includes 2 air pumps for simultaneous testing
  • With the ability to determine the time of the test time automatically
  • With an announcement feature to signal the end of the test
