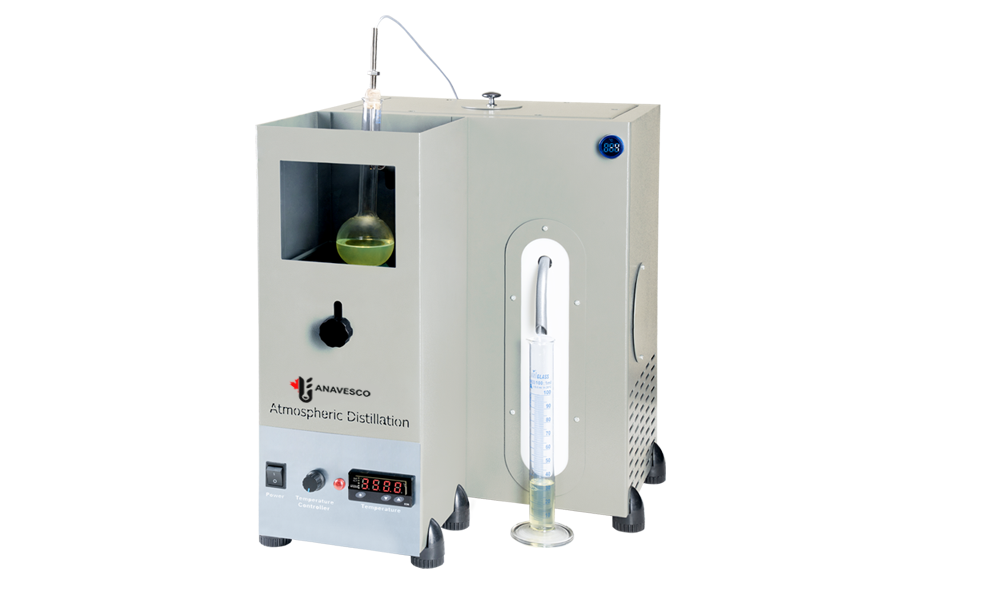

Distillation Atmospheric -AD 01

DISTILLATION(1000x1000) AN

Atmospheric Distillation - AD 01 instrument is designed in such a way that it can be easily used in oil laboratories. This instrument is used for atmospheric distillation of petroleum products and all types of liquid fuels within the permissible limits and based on the ASTM D86 standard to determine the characteristics of the welding range.

Technical Characteristics
  • The temperature range is from Room Temperature to 400 degrees Celsius
  • Adjustable light intensity of the test cell for the appropriate test conditions
  • Equipped with a lifting system to better adjust the position of the heater
  • Digital display with ±0.1 accuracy (instrument sensitivity ±0.1 based on ASTM D86 standard)
  • Internal cooling system
Temperature Controller
  • The device is equipped with a microprocessor temperature controller with a PID mechanism and the ability to program temperature stability and uniformity required for the test as well as calibrating it with high accuracy.
  • The display shows the temperature of the test cells and the set point.

Model

  • Distillation Atmospheric-AD01

Temp. Range

  • Ambient to 400 c

Temp. Controlle

  • PID Control

Accuracy

  • ± 0.1 c

Dimensions (mm)

  • 450 / 500 / 400

Weight (kg)

  • 30 kg

Volume

  • 100ml

Power Source

  • 220V – 50Hz – 8A

Setting/Readout

  • Digital

Heater

  • 1000 W

Detector

  • Automatic

Test Method

  • ASTM D 86

Distillation Atmospheric -AD 01

This instrument has the ability to determine the boiling point up to 400 degrees Celsius using an electric heater and a cooling fan at the end of the test, as well as using an integrated distillation and separation condenser. The Atmospheric Distillation -AD 01 internal parts are made of chemical material and physical characteristics resistant for longevity.

Features
  • 10-liter insulated condenser cell
  • Heater with adjustable height
  • The metal parts are made of chemical material and physical characteristics resistant
  • Includes a reference thermometer
  • Digital display with ±0.1 accuracy (instrument sensitivity ±0.1 based on ASTM D86 standard)
  • Digital display of condenser temperature with ±0.1 accuracy
  • Internal cooling system
