Density Meter

Density Meter-D 01

DANSITY METER(1000x1000) AN

Density is the amount of mass per unit volume, and relative density is the ratio of the density of the sample at temperature T to the density of water at standard temperature. The measurement is done using a hydrometer at a certain temperature and according to the ASTM D1298 standard. If needed, it can be measured at other temperatures and the results can be calculated.

Technical Characteristics
  • Temperature ranges from Room Temperature to 100 degrees Celsius
  • Adjustable light intensity of the test cell for the appropriate test conditions
  • Includes 2 chambers for simultaneous testing
  • Digital display with ±0.1 sensitivity (±0.05 device sensitivity in accordance with ASTM D1298)
Temperature controller
  • The device is equipped with a microprocessor temperature controller with a PID mechanism and the ability to program temperature stability, uniformity, and accuracy required for the test.
  • The display shows the temperature of the sample and the range of the test.

Model

  • Density Meter -D 01

Temp. Range

  • Ambient to 110 c

Temp. Controlle

  • PID Control

Accuracy

  • ± 0.05

Dimensions (mm)

  • 350 / 350 / 600

Weight (kg)

  • 10 kg

Volume

  • 10 Liters

Power Source

  • 220V – 50Hz – 2A

Setting/Readout

  • Digital

Heater

  • 1500 W

Detector

  • Automatic

Test Method

  • ASTM D 1298

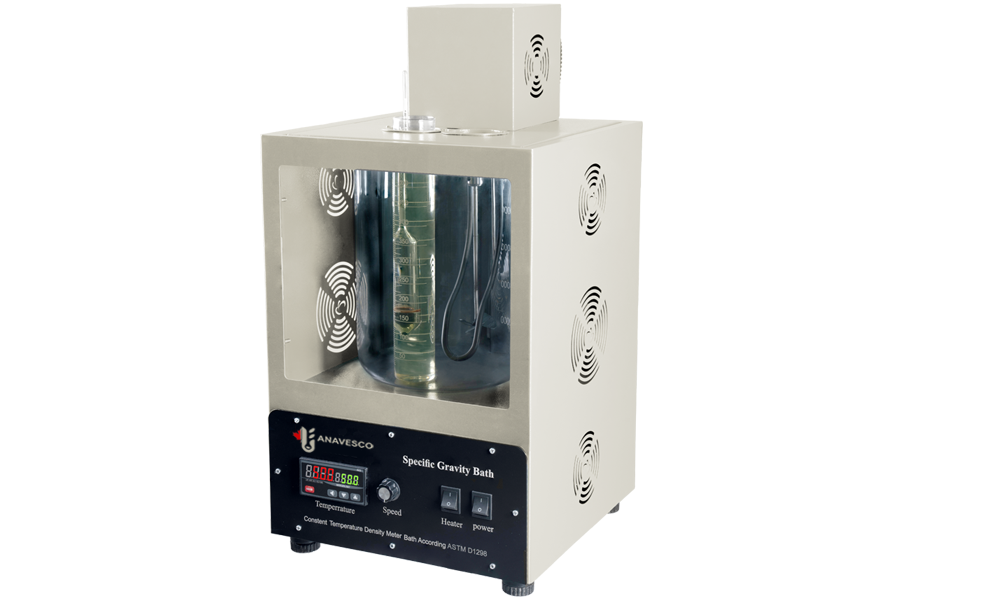

Density Meter-D 01

The D01 instrument is a high-quality and suitable solution for measuring density in accordance with the ASTM D1298 standard. The advantages of this instrument include temperature stability and accuracy through a heating and stirring system, and the use of corrosion-resistant internal parts (chemical material and physical characteristics resistant).

Features
  • Includes a 10-liter test cell to store fluid
  • With a heating and stirring system
  • Fluid-related equipment and parts are made of chemical material and physical characteristics resistant
  • Includes a reference thermometer
  • Stirrer with the ability to control the speed
  • Digital display with ±0.1 sensitivity (±0.05 device sensitivity in accordance with ASTM D1298)
  • Adjustable display for testing at different temperature
